SAR Imagery Gallery
Actual SAR data processed by Aperture Dynamics technology — showcasing multifrequency polarimetric composites, grayscale amplitude imagery, interferometry, and AI-powered analysis from DLR's F-SAR and drone-based sensors.

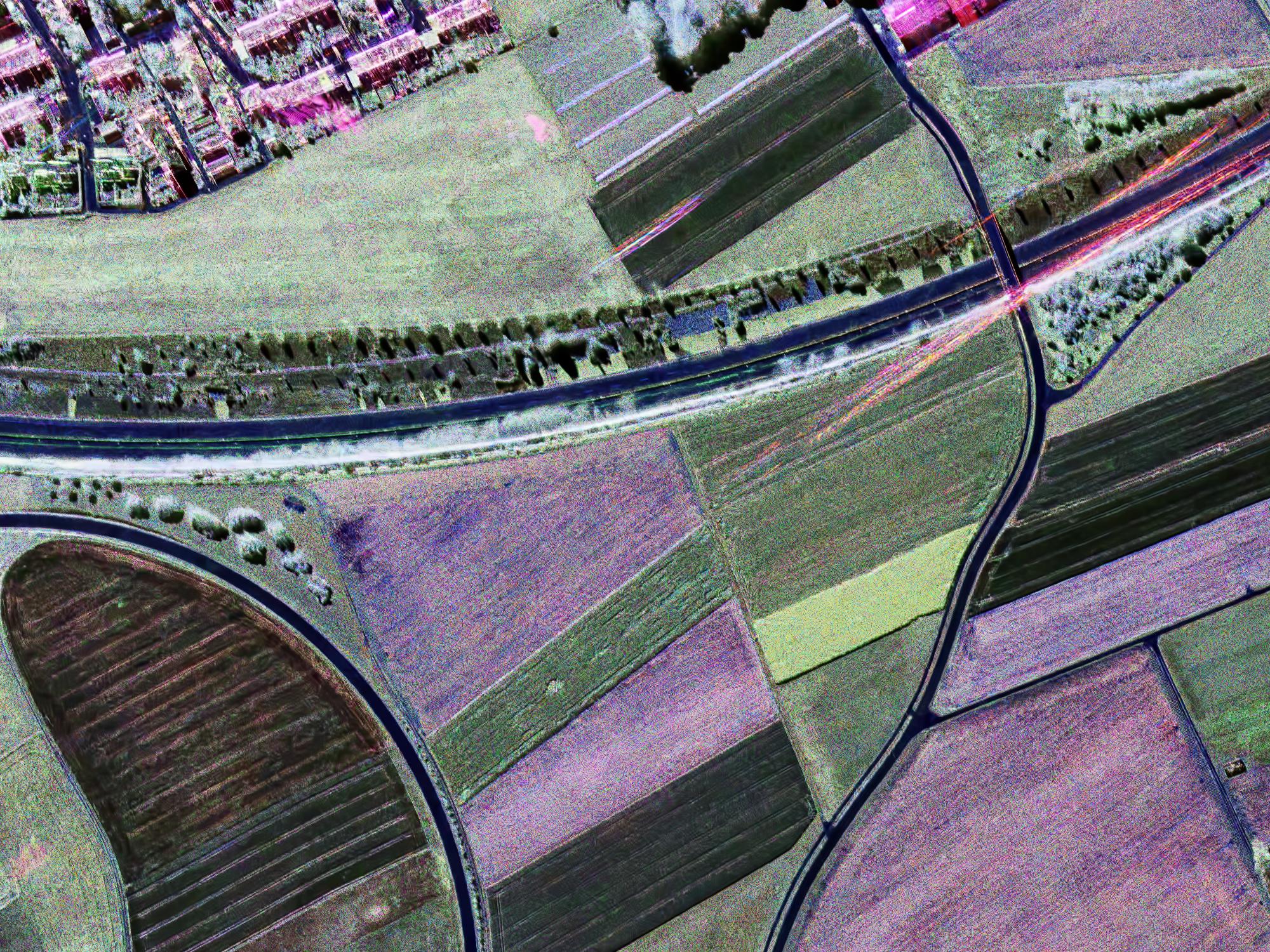

Pauli RGB Composite
High-resolution surface detail with distinct scattering mechanisms: even-bounce (red), volume scattering (green), odd-bounce (blue).
Deep Penetration Imaging
Long-wavelength L-band penetrates vegetation canopy and soil, revealing subsurface features invisible to optical sensors.

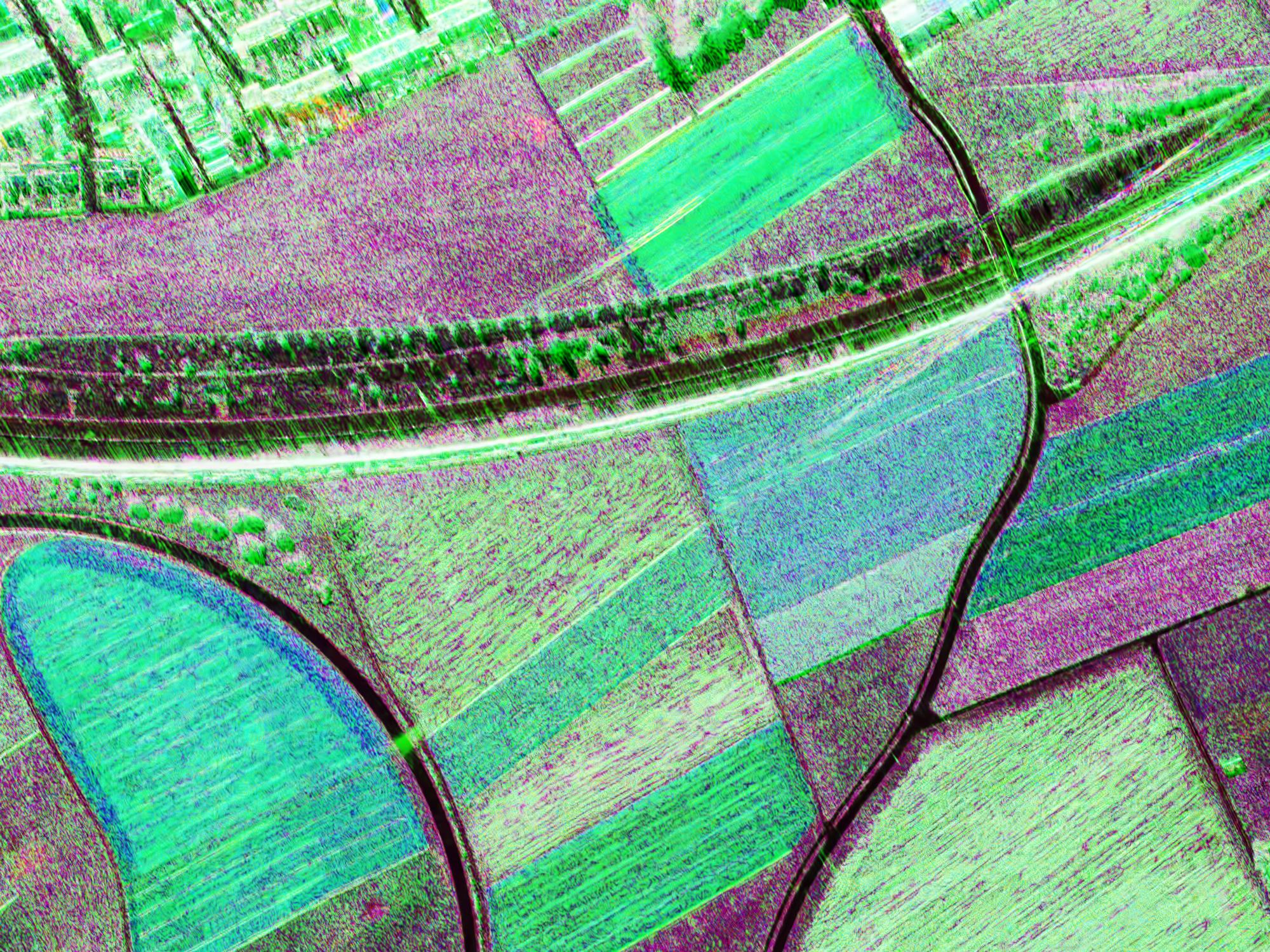

X/C/L-Band Composite
RGB composite combining HH polarization across X-band (red), C-band (green), and L-band (blue) for comprehensive target analysis.

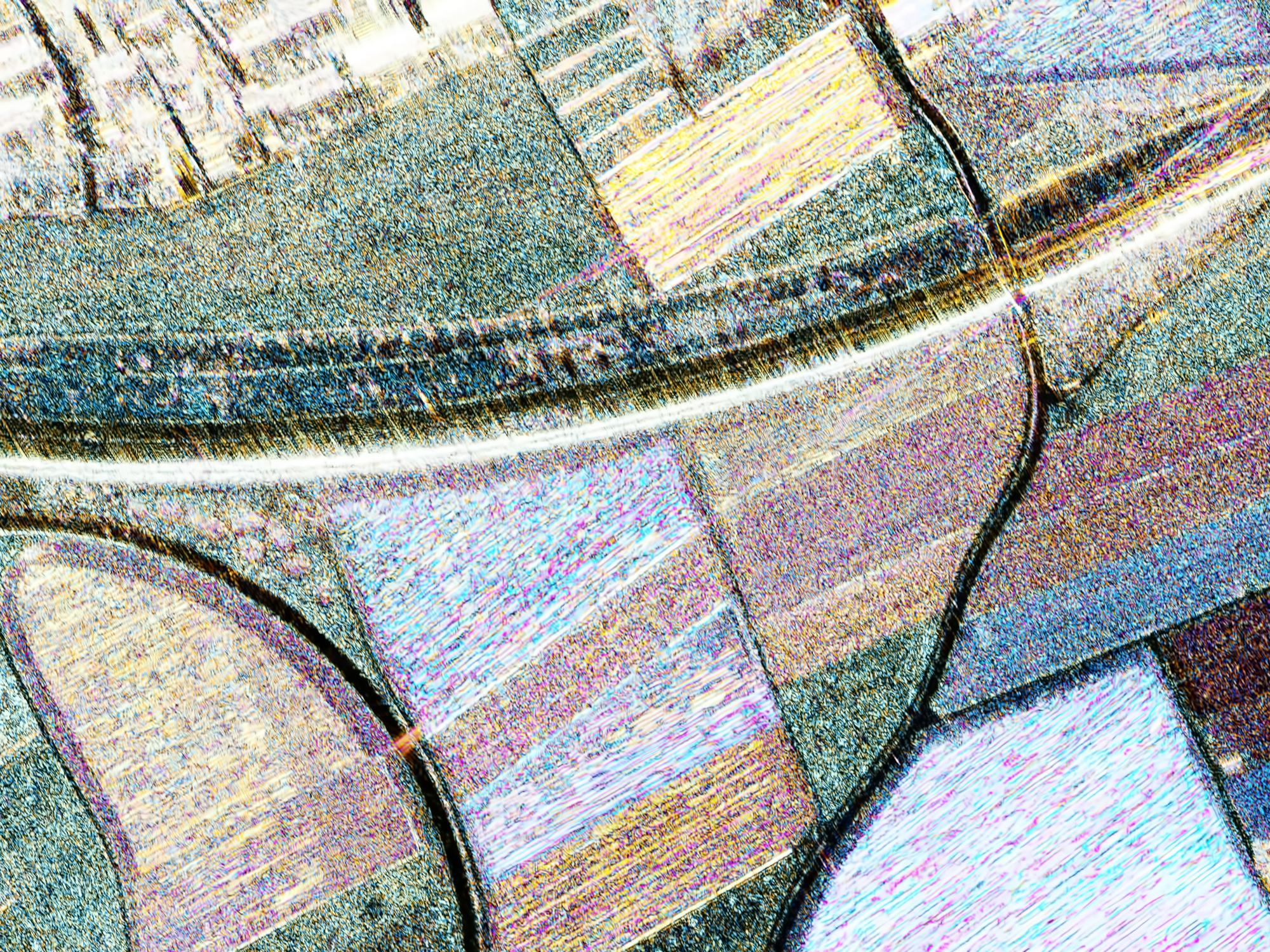

Building Detection
Multifrequency odd-bounce composite highlighting vertical structures and buildings across all frequency bands.

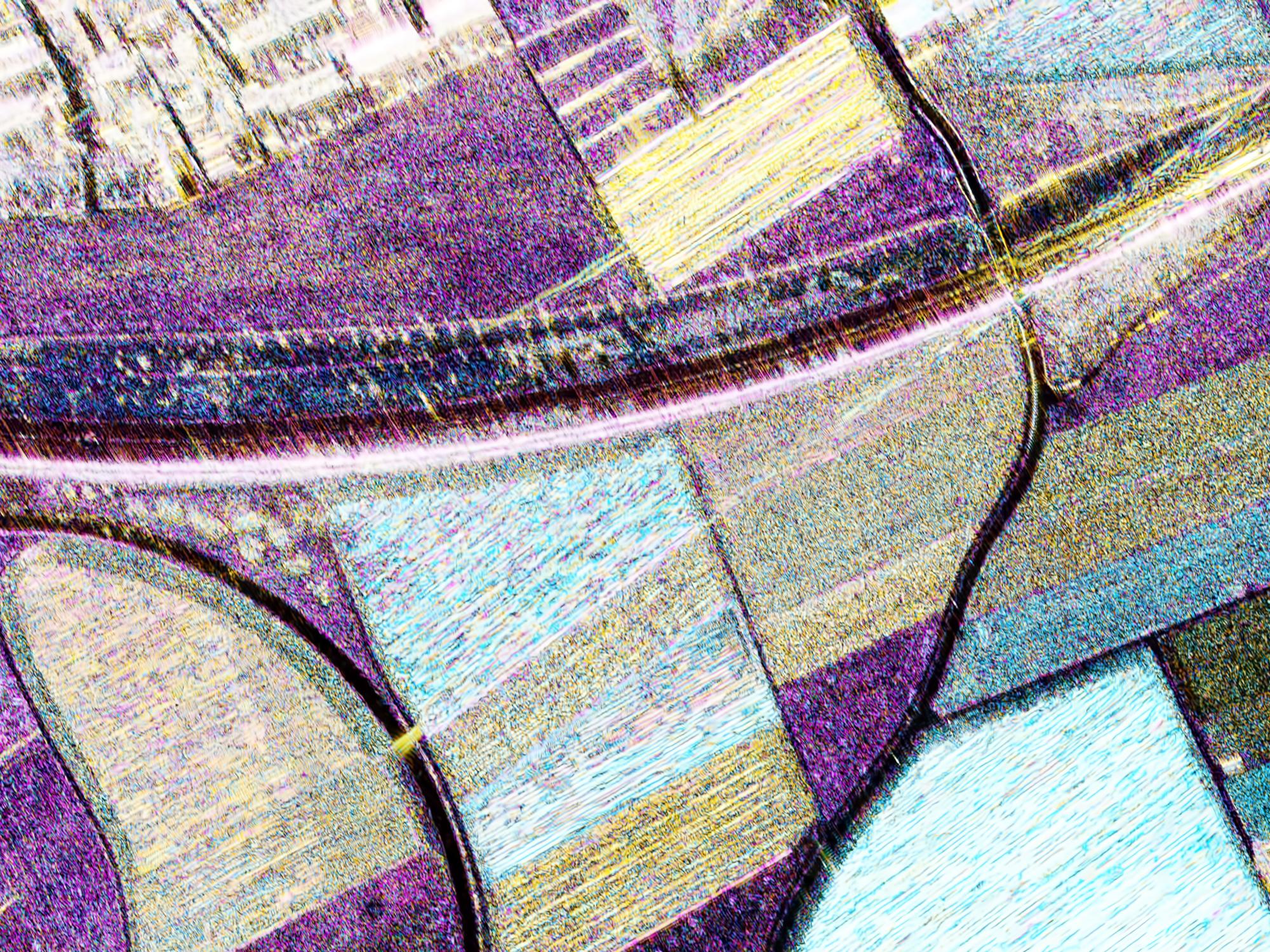

Surface Analysis
Even-bounce composite differentiating flat surfaces, water bodies, and ground planes with frequency-specific penetration.
Single-Polarization SAR
Classic grayscale SAR amplitude image showing radar backscatter intensity. Typical black and white SAR imagery used for target detection and terrain analysis.
Interferometric Phase
Interferometric SAR processing reveals millimeter-scale ground deformation. Color fringes represent phase differences between acquisitions.

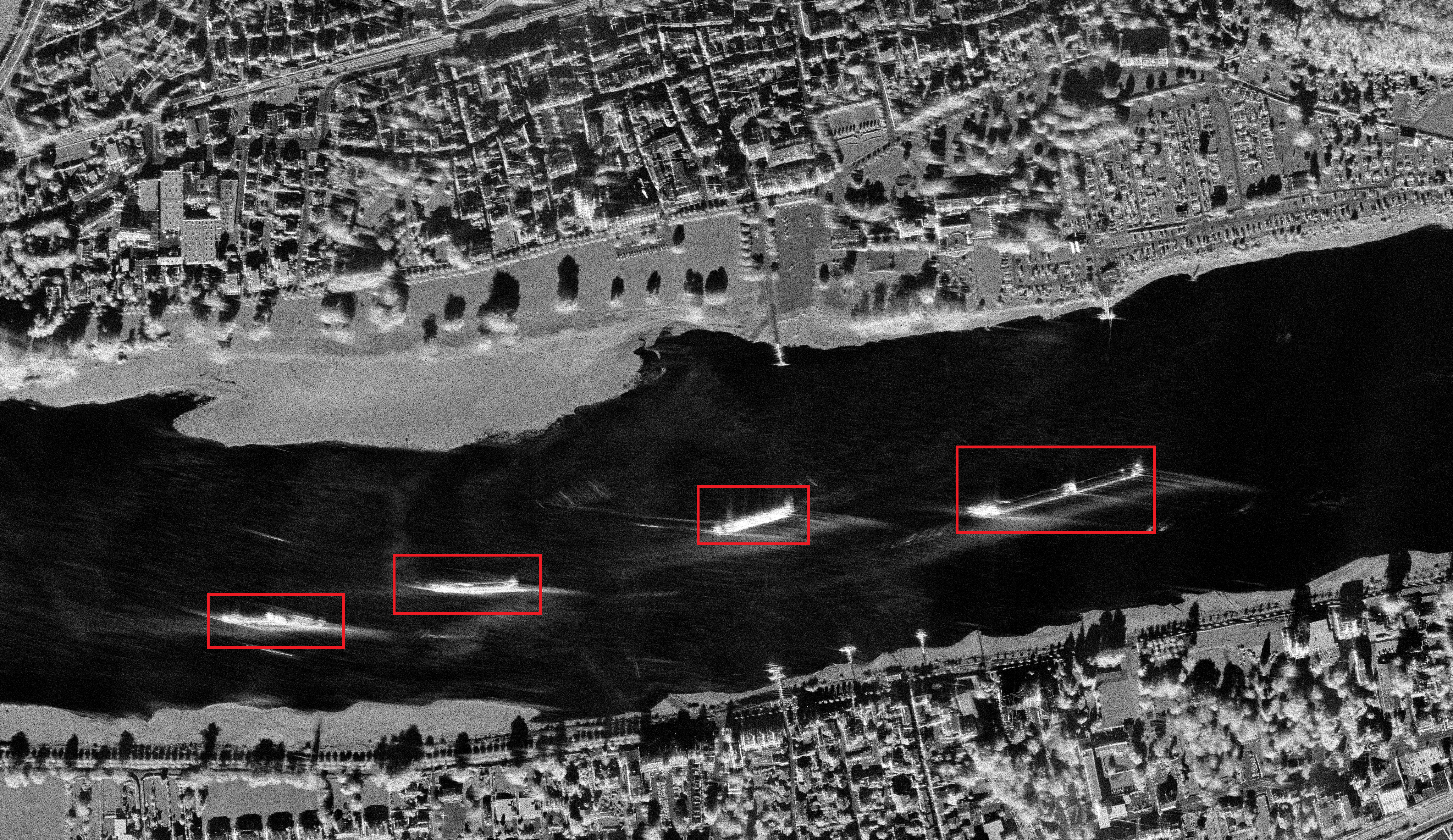

Moving Target Detection
SAR-GMTI processing detects and tracks moving vehicles. Advanced refocusing compensates for motion blur caused by target movement.
Vehicle Detection
Deep learning model trained to automatically detect and classify vehicles in SAR imagery, enhancing surveillance capabilities.
Annotated Detection Results
Ground truth annotations overlaid on SAR data showing AI-detected vehicles with confidence scores and bounding boxes.
